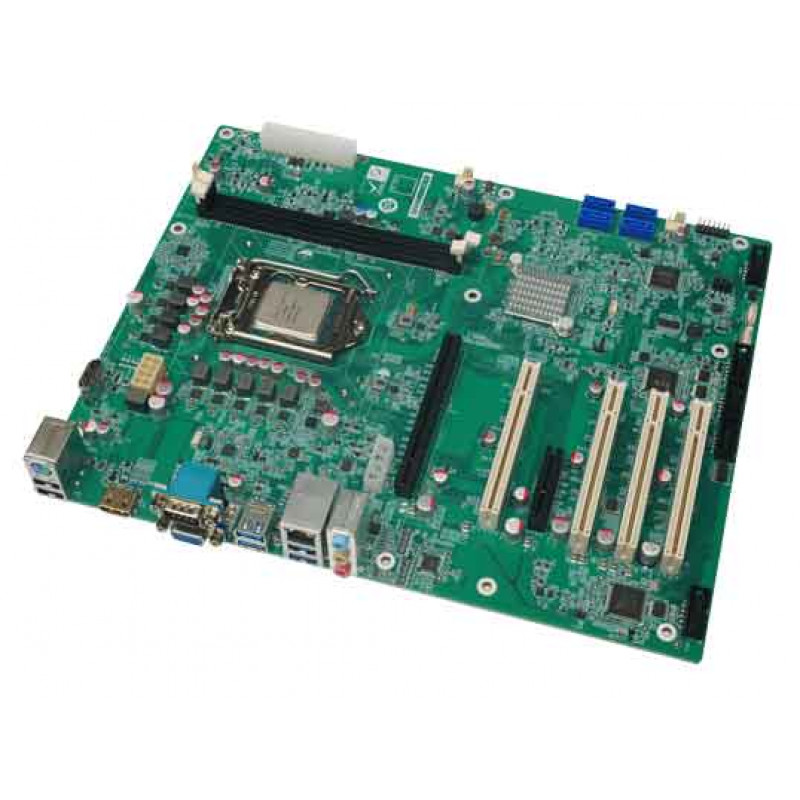

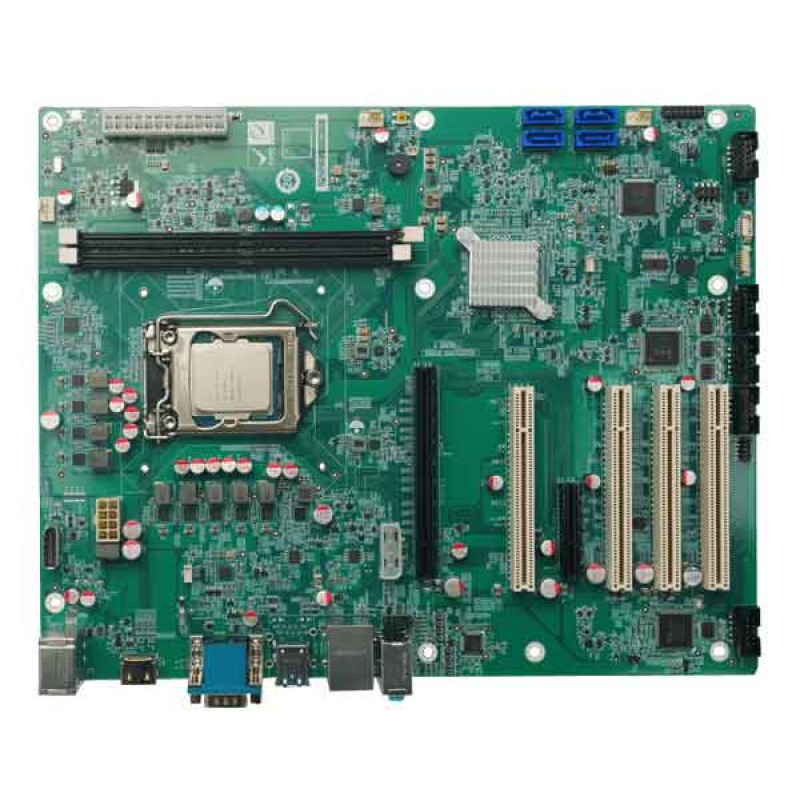

ATX motherboard supports 14nm LGA1200 Intel® 10th/11th Generation Core™ i9/i7/i5/i3, Celeron® and Pentium® processor, DDR4, Triple displays, 2.5GbE LAN, USB 3.2, SATA 6Gb/s, HD Audio and RoHS
Specification
CPU: LGA1200 socket supports 10th/11th Gen Intel® Core™ i9/i7/i5/i3, Celeron® and Pentium® processor
Chipset: Intel® H420E
BIOS: AMI UEFI BIOS
Memory: Two 288-pin 2933 MHz Dual-Channel DDR4 SDRAM Unbuffered DIMMs, supported up to 64GB
Graphics Engine: Up to Intel® UHD Graphics 630, Intel® HD Graphics Gen 9 Engines with Low power 16 execution unit, supports DX2015, OpenGL 5.X and OpenCL2.x, ES
Display Output:
- 1 x VGA (up to 1920 x 1200@60Hz)
- 1 x internal DP++ (up to 4096 x 2304@60Hz)
- 1 x HDMI 1.4 (up to 4096 x 2160@30Hz)
Ethernet LAN: Intel i225-V GbE controller (colay i225-LM) 2.5GbE

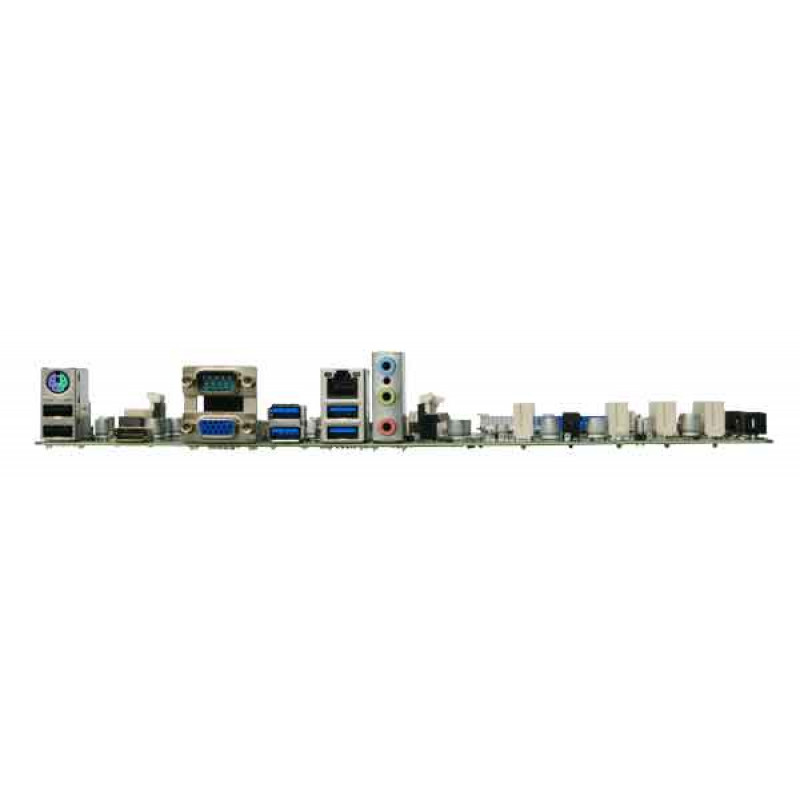

External I/O Interface:
- 4 x USB 3.1 Gen 1 (5Gb/s)
- 2 x USB 2.0
- 1 x RS-232
- 1 x KB/MS
Internal I/O Interface:
- 1 x RS-232/422/485 (2x5 pin, P=2.54)
- 2 x USB 2.0 (2x4 pin, P=2.54)
- 4 x RS-232 (2x5 pin, P=2.54)
- 4 x SATA 6Gb/s (no RAID)
SMBus: 1 x SMBus(1x4 pin)
Audio:
- Realtek ALC888S HD codec
- 3 x Audio Jack (Line-in, Line-out, Mic-in) on rear IO
- 1 x Front audio (2x5 pin)
Front Panel: 1 x Front Panel (2 x 7 pin, Power LED, HDD LED, Speaker, Power Button, Reset Button)
LAN LED: 1 x LAN LED (1x2 pin)
Expansion:
- 1 x PCIe Gen3 x16 slot
- 1 x PCIe Gen3 x4 slot
- 4 x PCI slot
Digital I/O: 1 x 8-bit digital I/O (2x5 pin)
TPM: Intel® PTT (TPM 2.0)
FAN connector: 1 x CPU fan connector (1x4 pin), 2 x System fan connector (1x4 pin)
Watchdog Timer: Software Programmable support 1~255 sec. System reset
Power Consumption:
3.3V@0.84A, 5V@8.12A, 12V@3.77A, 5VSB@0A
(Intel® Core™ i5-10500TE CPU with two 32 GB 2933 MHz DDR4 memory, EuP mode enabled)
Packing Content:
- 1 x IMBA-H420 single board computer
- 2 x SATA cable
- 1 x I/O shielding
- 1 x QIG
Certifications:
,
compliant
Customs Tariff Number: 84733020
