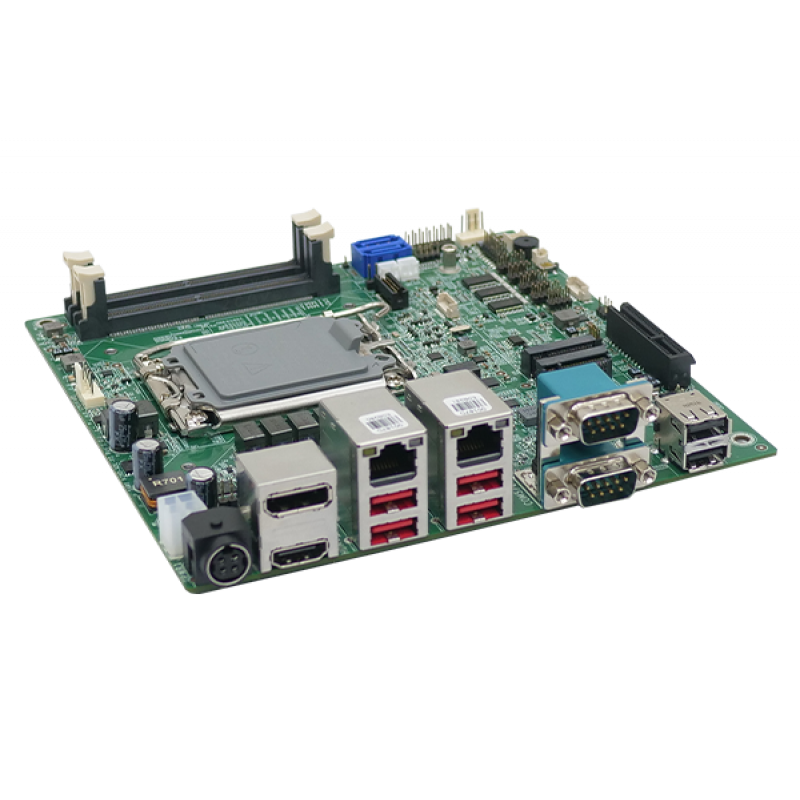

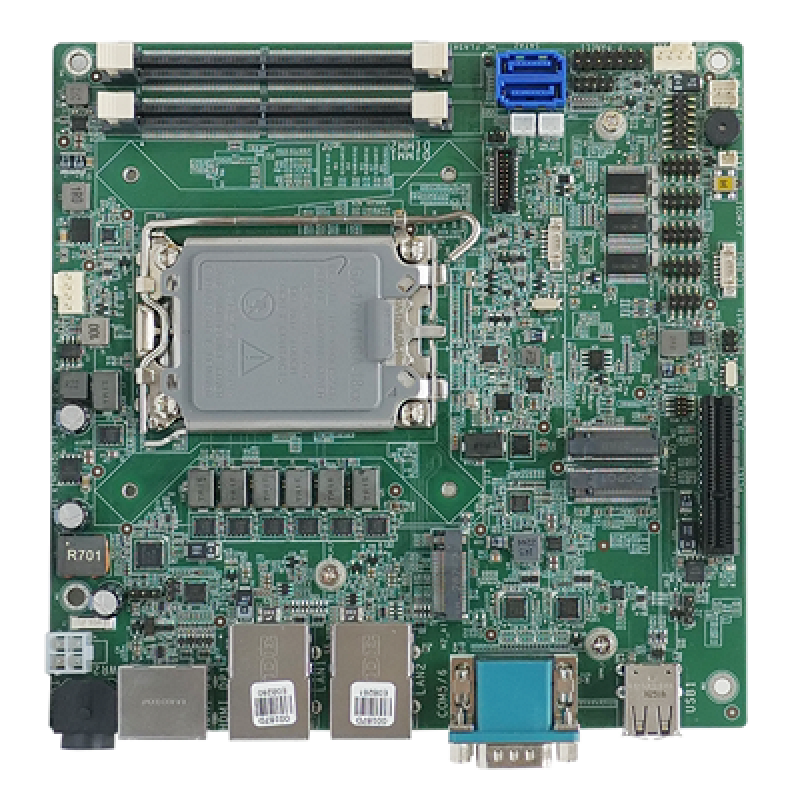

IEI mini-ITX MB Intel® Alder Lake-PS Celeron® 7305 processor, DDR4 SO-DIMM 3200 MHz up to 64 GB, triple display with DP, HDMI™ and iDPM slots, SATA, Dual Intel 2.5GbE, USB3.2, M.2, RoHS
Description:
● on board Intel® Alder Lake-PS Celeron® 7305 processor (socket), TDP 15W
● Support two 3200MHz DDR4 SO-DIMM up 64 GB
● GPU: Intel® UHD Graphics for 12th Gen Intel® Processors

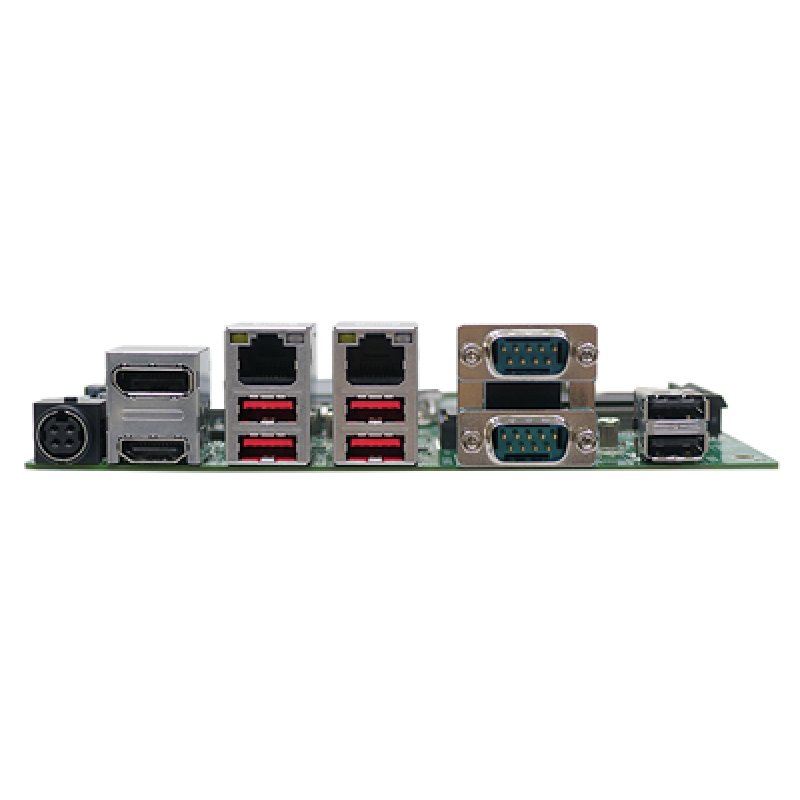

● Triple independent display via HDMI™, DP, iDPM
● Support Dual Intel® I225V 2.5GbE controller
● Support PCIe Gen3 x4, M.2 M key and M.2 A key expansion
● TPM: Intel@PTT/TPM 2.0
Important Notification:No recommand on Changing CPU, It will cause no booting on system start. Update correct BIOS version whenever you swap CPUs.
Packing list:
- 1* KINO-ADLPS-C MB
- 1* SATA cable
- 1* I/O Shield
- 1* QIG
Custom Tariff Nr.: 84733020
Safety:
,
compliant,
,
Download:Datasheet, QIG, Manual
Call for Optional CPU messages & Quotation:
i3: Intel® Alder Lake-P Core™ i3-1220P, 10C/12T, Mobile CPU 4.4 GHz 12 MB smart Cache TDP 28W, GPU: Intel® UHD Graphics for 12th Gen Intel® Processors
i5: Intel® Alder Lake-P Core™ i5-1240P, 12C/16T, Mobile CPU 4.4 Ghz 12 MB smart Cache TDP 28W, GPU: Intel® Iris® Xe Graphics eligible
i7: Intel® Alder Lake-P Core™ i7-1260P, 12C/16T, Mobile CPU 4.7 GHz 18 MB smart Cache TDP 28W; GPU: Intel® Iris® Xe Graphics eligible
