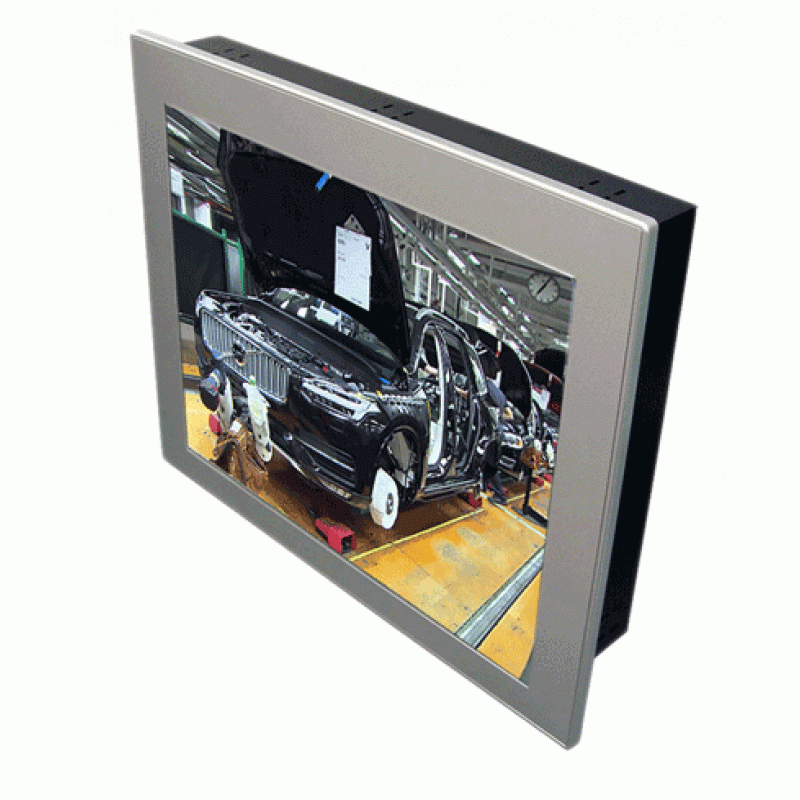

Lex Slim 17" ( 4:3 ) Panel PC with Intel® Bay Trail-D Celeron® J1900 2.0GHz (Quad Core) CPU, Resistive Touch Screen
Lex MB: 3I380CW-D94
Chipset: Intel® Bay Trail SoC
Memory: On Board DDR3L 1066 / 1333 MHz 4GB
Storage: 1 x SATA ports 2.0 Data transfer rates up to 3.0 Gb/s (300 MB/s), Share with mSATA 1, 1 x mini card socket for mSATA
BIOS: Insyde UEFI BIOS
Display: 1 x VGA, 1 x HDMI, Dual Channel, 48 bits LVDS (3I380C)
Touch: USB touch screen controller (3I380C)
Lan: 2 x Intel GbE (external)
USB: 1 x USB 3.0 (external), 3 x USB 2.0 (external), 2 x USB 2.0 (internal)-share Mini PCIe
Serial IO:
- 5 x RS232 (internal)
- 1 x RS422 / 485 (internal)
Wide Range 9~36V DC input
ABS front frame + Aluminum housing
Max. Resolution: 1280 x 1024
Mounting: Support Panel Mount / Wall mount, VESA mount & Stand (optional)
Expansion slots
- 1 x Full size Mini PCIe (PCIe / mSATA / USB)
- 1 x Full size Mini PCIe (PCIe / USB)
- 1 x Mini SIM

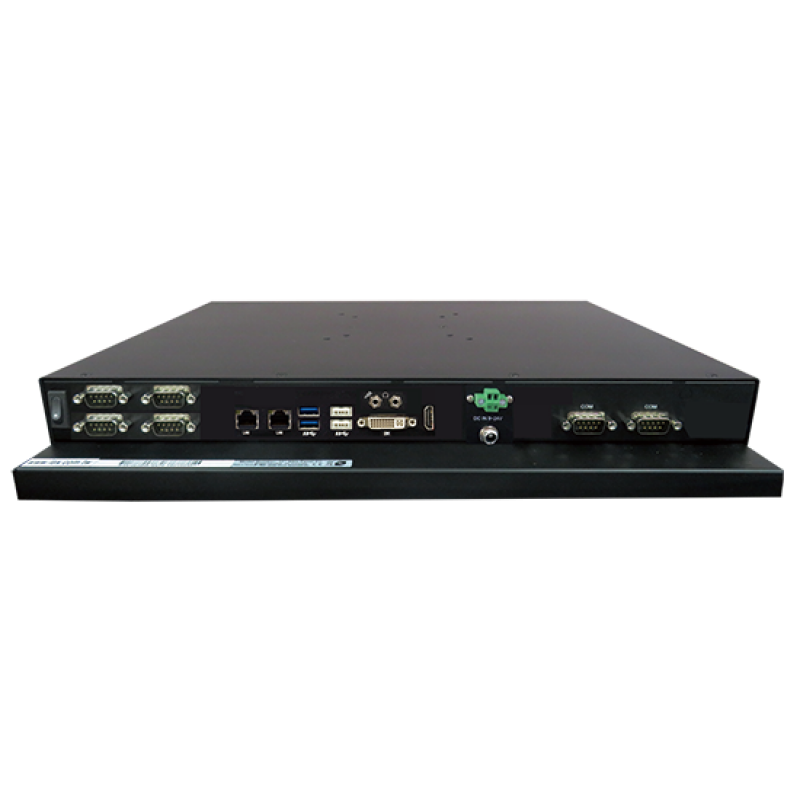

I/O ports
- USB: 2 x USB 3.0, 2 x USB 2.0 ; 2 x USB 2.0 (optional)
- Serial ports 5 x RS232 , 1 x RS 422 / 485
- HD Audio Line-out / Mic-in
OS Support:
Windows® 10 IOT (64bit), Windows® 8.1 (64bit), Windows® Embedded 8 Standard (64bit),
Windows® 7 (32 / 64bit), Windows® Embedded Standard 7 Runtime,
Ubuntu 14.10 above, Fedora 25 above, Debian 8 above, CentOS 7.3 above, Mint 18.1 above
Accessories:
- German Power cord
- 60 Watts AC power adapter
- Touch Pen
- Panel Mount accessories
Customs Tariff Nr.: 84714100
Certification:
,
