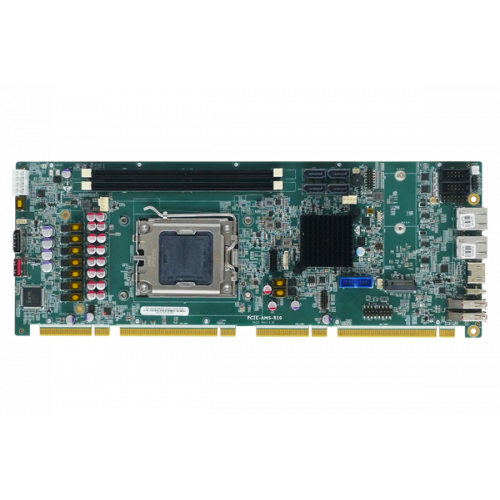

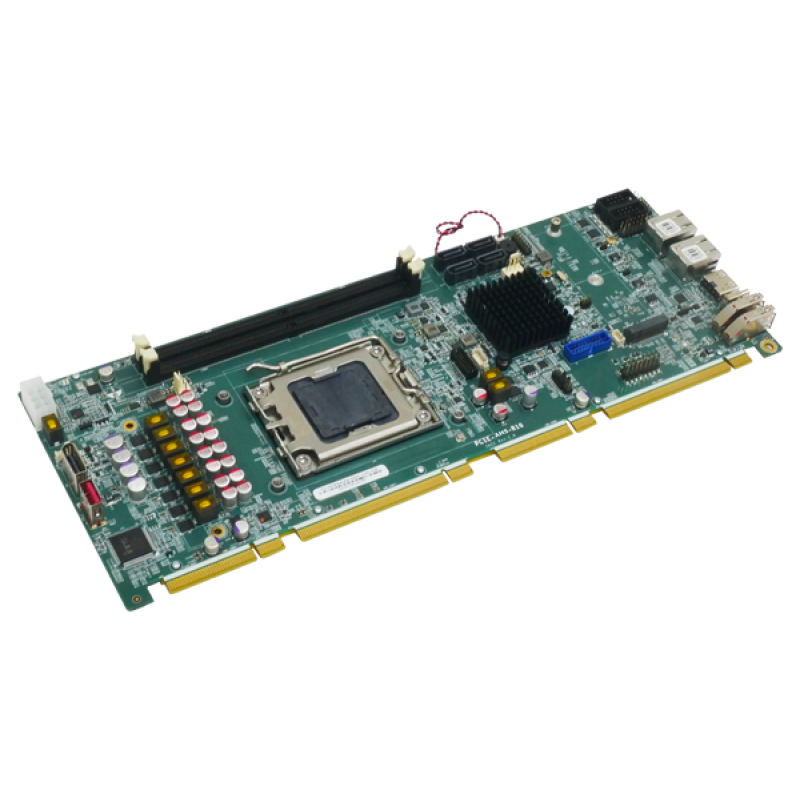

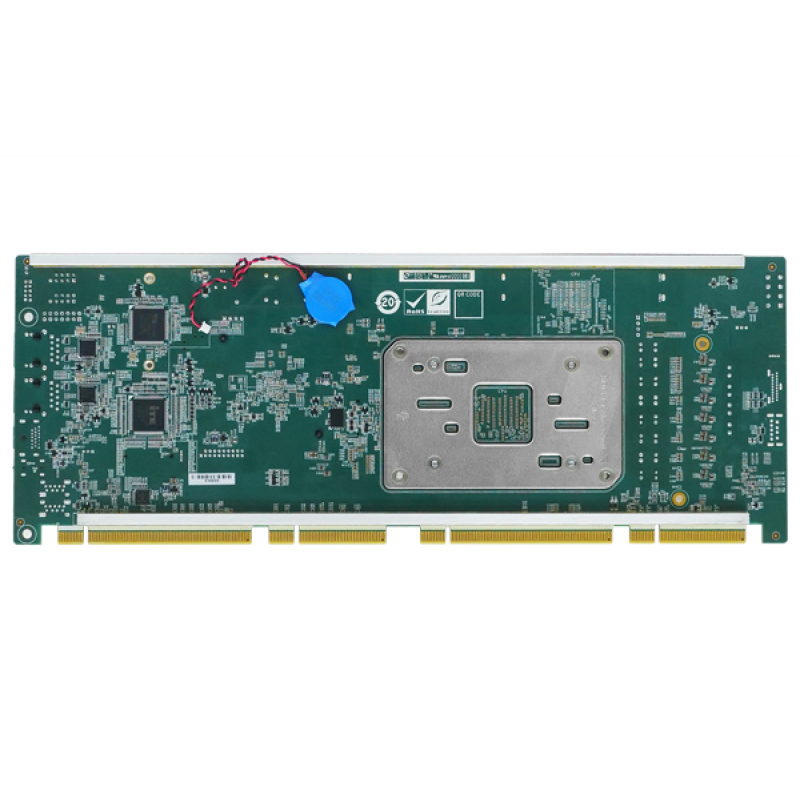

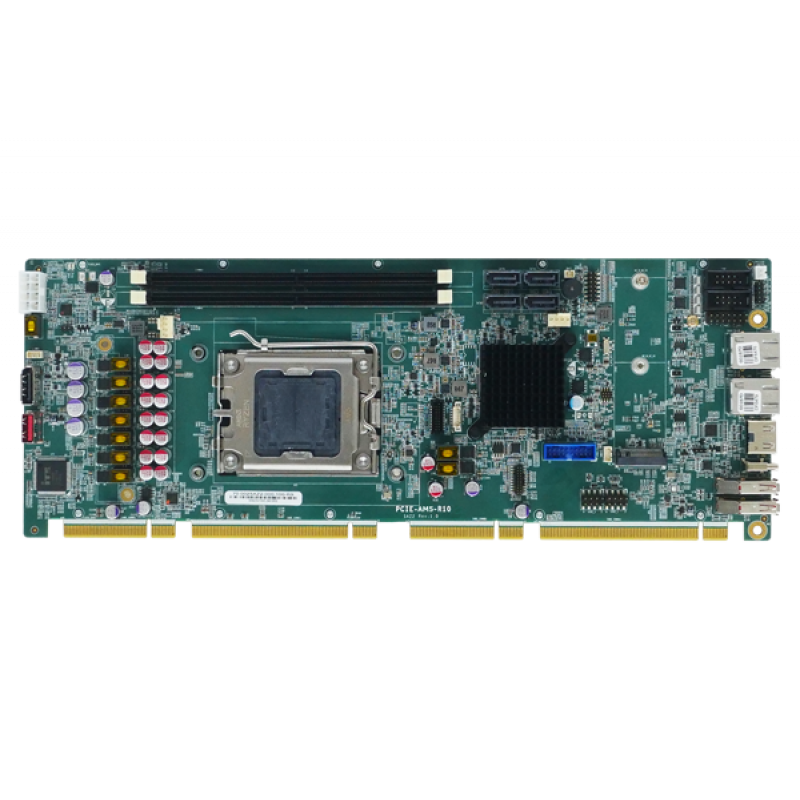

Full-size PICMG 1.3 CPU Card supports AMD Ryzen™ 7000/8000 Series Desktop Processors, DDR5, dual Display, Dual Intel® 2.5GbE, USB3.2, M.2, RoHS
Specification:
CPU: AMD Socket AM5 for AMD Ryzen™ 7000 & 8000G PHX1 Series Desktop Processors
Chipset: AMD A620
Memory: two 288-pin 5200 MHz Dual-Channel DDR5 SDRAM Unbuffered DIMMs, supported up to 64GB
Cooling method / System Fan:
- 1 x CPU fan connector (1x4 pin)
- 1 x System fan connector (1x4 pin)
Storage: 4 x SATA : 6Gb/s (RAID 0/1/10 supported)
Display Output:
- 1 x Display Port : internal 180° DP 1.4, 4K @60Hz
- 1 x HDMI™ : 4K @30Hz
Ethernet: 2 x LAN -
- LAN1: Intel® I226V 2.5GbE controller
- LAN2: Intel® I226V 2.5GbE controller
I/O Interface:
- 1 x DIO : 12-bit digital I/O (2x7 pin)

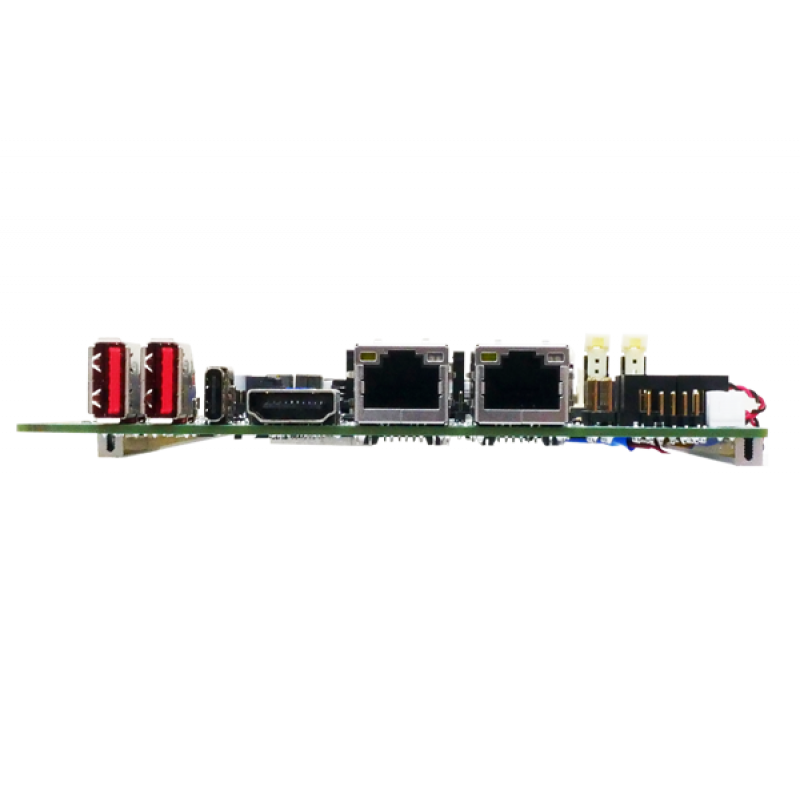

- 3 x External USB 3.2 Gen2x1 -
- 2 x USB 3.2 Gen2 (Type-A)
- 1 x Type C (10Gb/s)
- 2 x Internal RS-232/422/485 : 2x5 pin, P=2.54
- 8 x Internal USB 2.0 -
- 4 x USB 2.0 (2x4 pin, P=2.54)
- 4 x USB 2.0 to the backplane
- 2 x Internal USB 3.2 Gen1x2 : 5Gb/s, 2x10 pin
- 1 x Internal USB 3.2 Gen2x1 : 10Gb/s, internal Type A
Expansion:
- 1 x M.2(NGFF) : M.2 M Key (2242/2280, PCI1 x DIO : 12-bit digital I/O (2x7 pin)
- 4 x PCIe x1 : signal via golden finger, (support 1 x4, or 4 x1)
- 1 x PCIe x16 : signal via golden finger, (Support x16, or x8 + x8, or x4 + x4 + x4 + x4)
Packing list:
- 1 x PCIE-AM5 single board computer
- 1 x I/O Shielding
- 1 x SATA cable
- 1 x QIG
Customs Tariff No.: 84733020
