PICMG 1.3 CPU Card supports 14nm LGA1200 Intel® 10th/11th Gen Core™ i9/i7/i5/i3, Celeron® and Pentium® processor with Intel® Q470E, DDR4, HDMI, DP, Dual Intel® 2.5 GbE, USB 3.2, SATA 6Gb/s, M.2 and RoHS
Specification:
CPU: LGA1200 Intel® 10th/11th Gen. Core™ i9/i7/i5/i3,Pentium® and Celeron® processor (Support up to 65w)
Chipset: Intel® Q470/Q470E
Memory: 4 x 288-pin 2933 MHz Dual-channel DDR4 DIMMs support up to 128 GB
Cooling method / System Fan:
1 x CPU fan connector (1x4 pin)
1 x System fan connector (1x4 pin)
Storage:
4 x SATA : 6Gb/s (Support RAID 0/1/5/10)
4 x SATA : 6Gb/s (Support RAID 0/1/5/10)
Display Output: 1 x HDMI™ : up to 4096 x 2160@30Hz
Ethernet: 2* Lan:
LAN1: Intel® I225V 2.5GbE controller
LAN2: Intel® I225V 2.5GbE controller
Audio: 1 x HD Audio : 1 x IAUDIO, support IEI AC-KIT-888S Audio Module (2 x 5 pin)

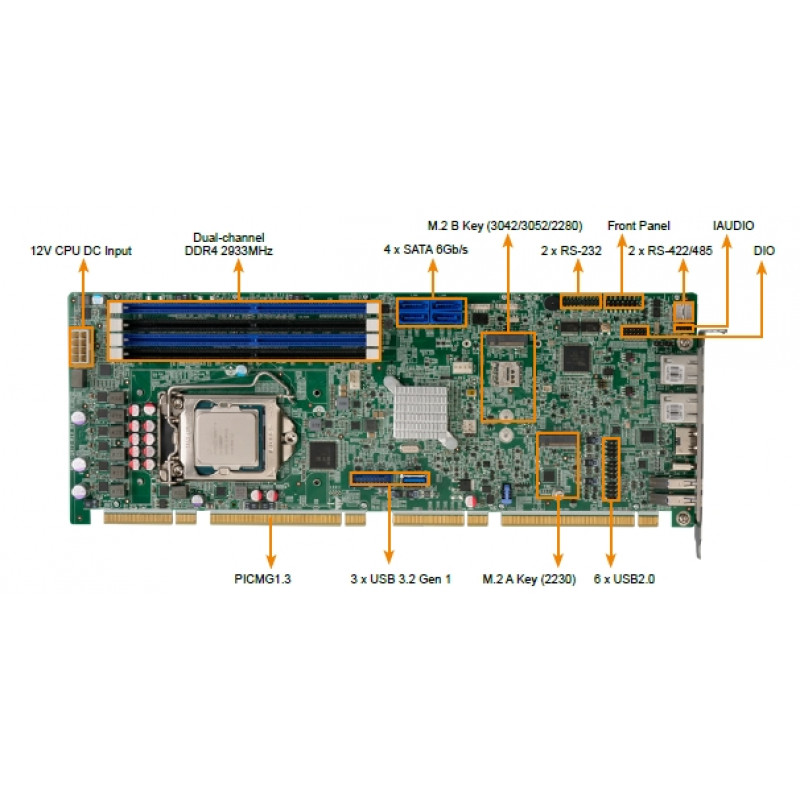

I/O Interface:
- 2 x Internal RS-232 : 2x5 pin, P=2.0
- 2 x Internal RS-422/485 : 1x4 pin, P=2.00 ,RS-485 support AFC
- 2 x External USB 3.2 Gen1x1 : 5Gb/s (Type-A)
- 6 x Internal USB 2.0 : 2x4 pin, P=2.54
- 3 x Internal USB 3.2 Gen1x1 :
2 x USB 3.2 Gen1 (5Gb/s) (2x10 pin，P=2.00)
1 x USB 3.2 Gen1 (Type A 180°) - DIO : 12-bit digital I/O (2x7 pin)
- 1 x External USB 3.2 Gen2x1 : 10Gb/s (Type-C)
Expansion:
- 1 x PCIe x16 :
signal from CPU via golden finger
(supports x16, or x8 + x8, or x4 + x4 + x8) - 1 x PCIe x4 :
signal from PCH via golden finger
(supports x4, or x1 + x1 + x1 + x1)
- 4 x PCI Slot : signal via golden finger
- 3 x M.2(NGFF) :
1 x M.2 A Key (2230) (with PCIe Gen3 x2/USB 2.0)
1 x M.2 B Key(3042/3052/2280) w/ SIM holder (with PCIe Gen3 x2)

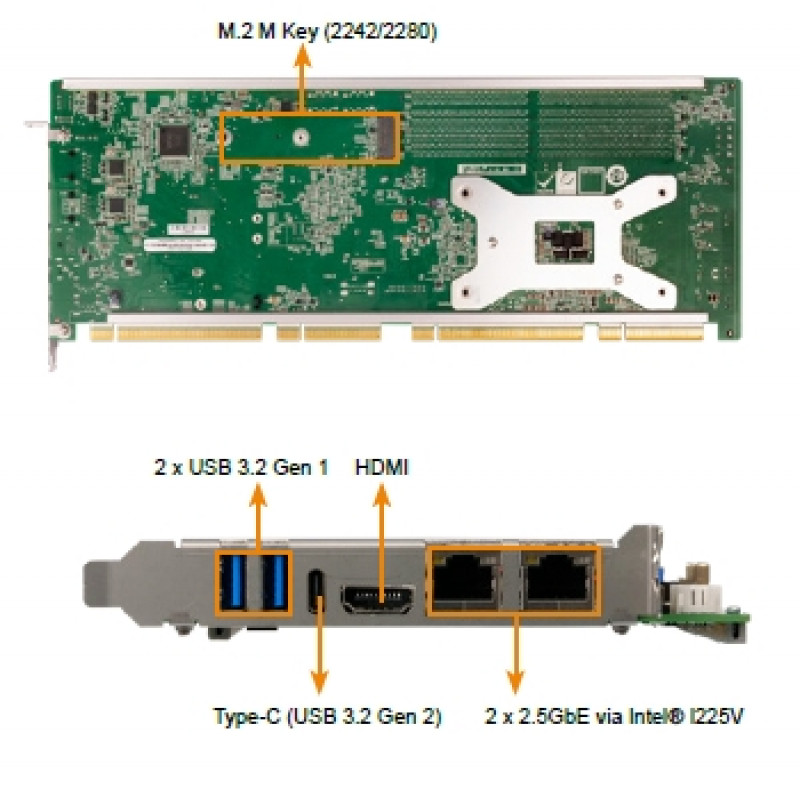

1 x M.2 M Key (2280/2242) (with PCIe Gen3 x4)
Packing list:
- 1 x PCIE-Q470 single board computer
- 1 x SATA cable
- 1 x Mini jumper pack
- 1 x QIG
Certification:
,
compliant
Customs Tariff (HS ) code : 84733020
