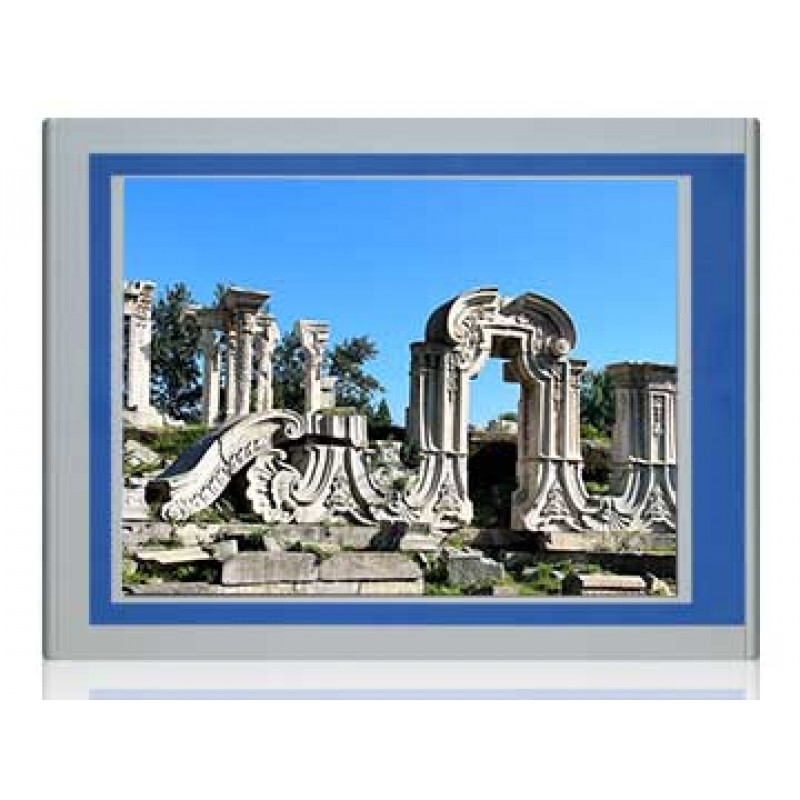

17″ Nodka resistive Touch Panel PCs, support Intel® Core™ i3/i5 (10th-11th Gen), LGA1200, Max 65W TDP
Features:
- 17” SXGA (1280×1024) resistive touchscreen for precise single-touch operation
- Supports Intel® Core™ i3/i5/i7 10th-11th Gen Default on board CPU i5-11500, max 65W TDP, H510 chipset
- Memory: 2 x DDR4-2666/3200 MHz, up to 32GB, Default built in Memory 8GB RAM
- Storage: 1 x M.2 (M Key 2280 PCIe Gen3 x 4 Lane), 1 x mSATA
- 3 x LAN ports (Intel 1000Mbps) networking
- 4 x COM (RS232/RS485), 6 x USB (4 x USB3.0 + 2 x USB2.0) for industrial connectivity
- 8DI + 8DO I/O with configurable NPN/PNP output (with -P models using PNP output)
- Active cooling with fan for enhanced thermal performance
- Wide-range power input (DC12~24V ±10%) with protection features
- Panel & VESA mounting for easy installation in industrial setups
- IP65 front panel protection against dust and water
Datasheet
Alternative CPUs( call for inquiry ): i3-10100, i7-11700T
Alternative Memory( call for inquiry ): 16 GB RAM, 32GB RAM
Optional parts: 128 /256 GB SSD MSATA, WIFI (7260HMWBN)&Antenna
Further application ( ask for quotation ) :
- fanless: Model: TPC6000-A174-B-TP-P, Datasheet under request
