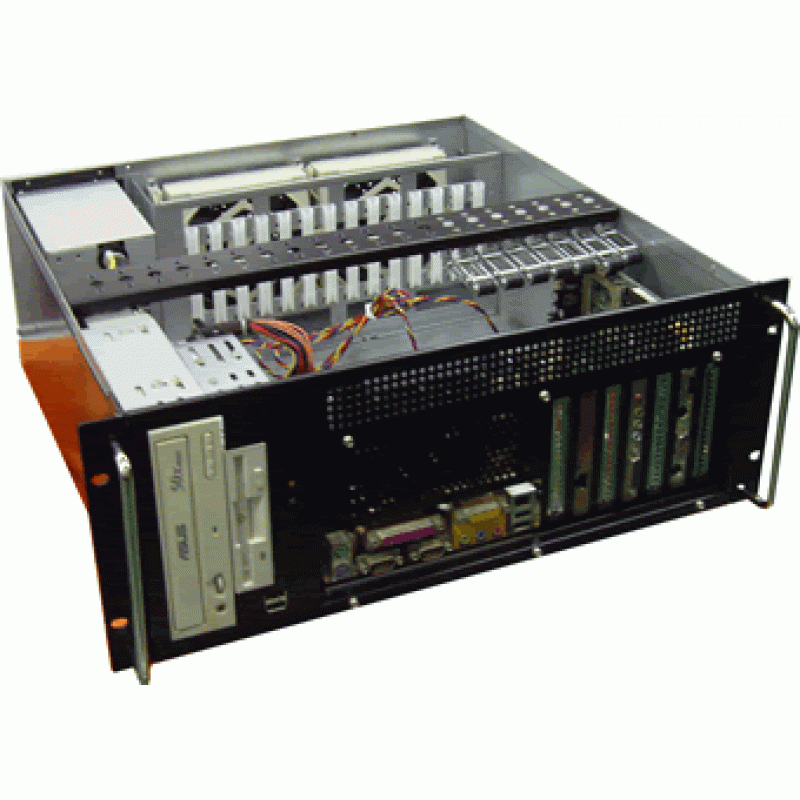

19" 4U FA Chassis front I/O access, 12" x 13" ATX MB ( ver. 3.1 )
Construction:
- All heavy-dutyCold rolled Electroplated steel, AWG GAUGE 18 standard, SECC
- Double side Anti-Vibration holding Clamps, fix full range of add on card,
- Single or redundant power supply supported
- rear installed single power / redundant power supply with power Frame, picture
EMI: Effective EMI shielding protect system against min. 3 GHZ of radiation.
Ventilation:

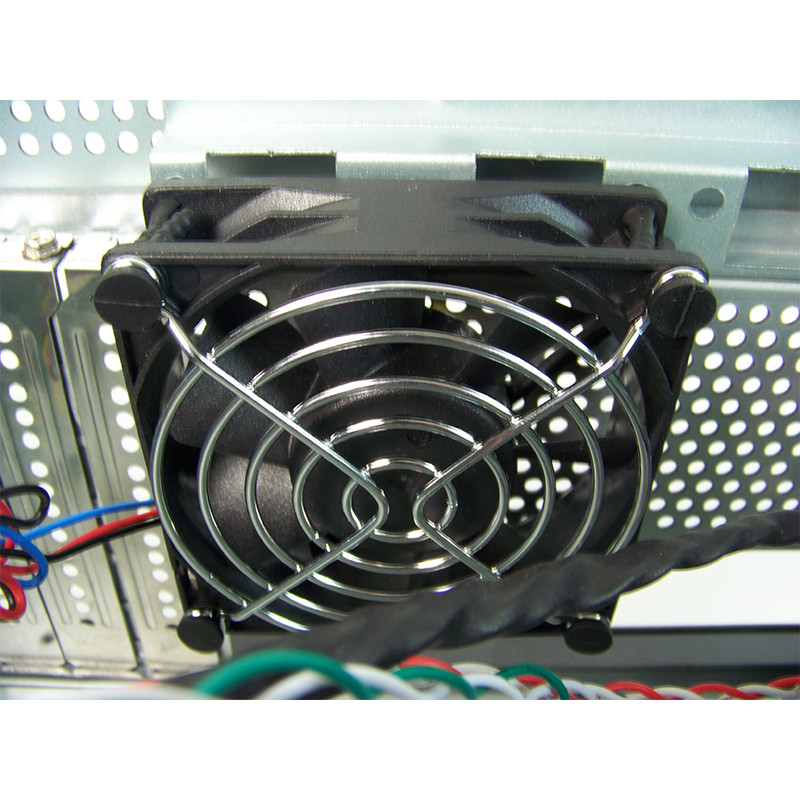

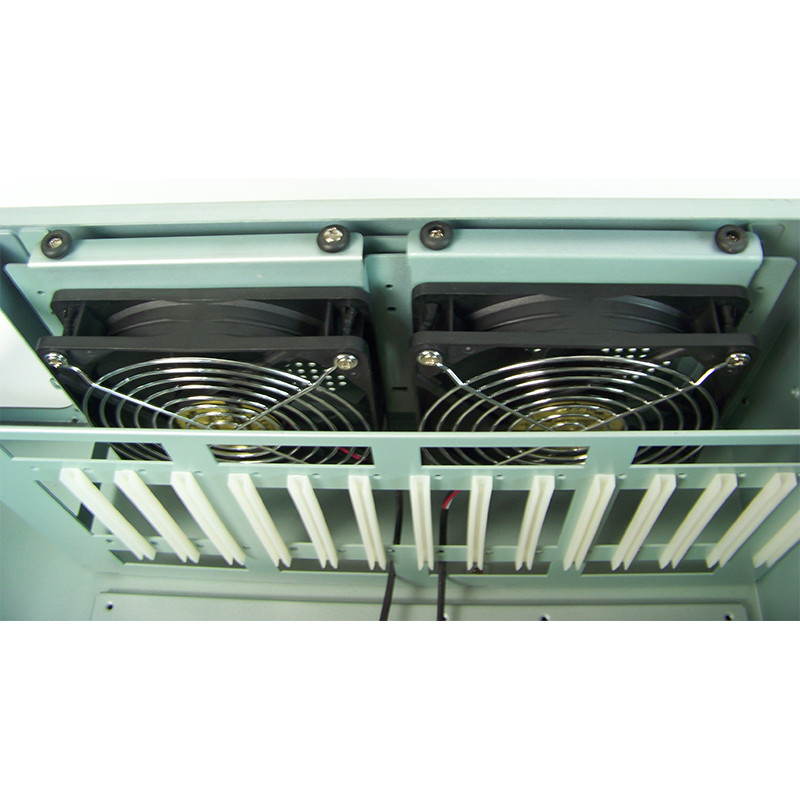

2 x 120mm DC--DC High speed Ball bearing 4 Pin PWM, Hot swappable fan(2 Ball) in rear ( see picture ), plus 1 x 80mm DC--DC High speed Ball bearing 4 Pin PWM fan(2 Ball) in Front ( see picture) ; front panel also possibile to built in 2 x 8 (or 6 ) cm fan;
Drive Space: 1 x 5.25" driver spaces,1 x 3.5" Floppy , 1 x 3.5" HDD driver spaces
LED Signals / USB : HDD , Lan , Power / 2 x USB 3.0

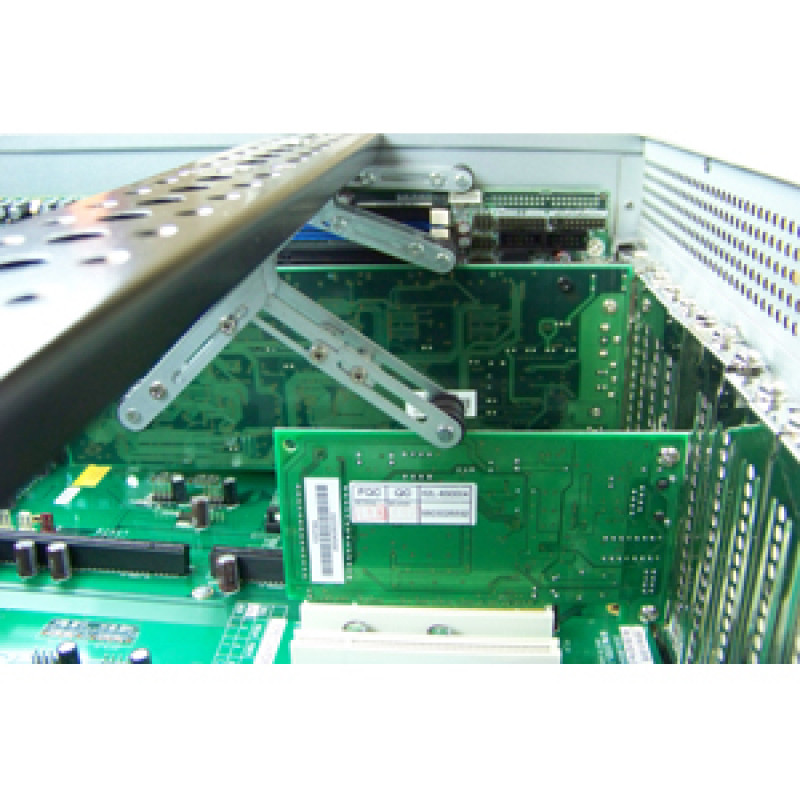

Card holding: Standard built in 3 pcs anti-vibration add-in card holding Clamps (CHC4450); Zero difference Card holding bar design
Power supply: PS2 size P/S or PS2 size redundant Power supply
Color: black color , RAL 9001
Custom Tariff Nr. ( HS code ) : 84733080
