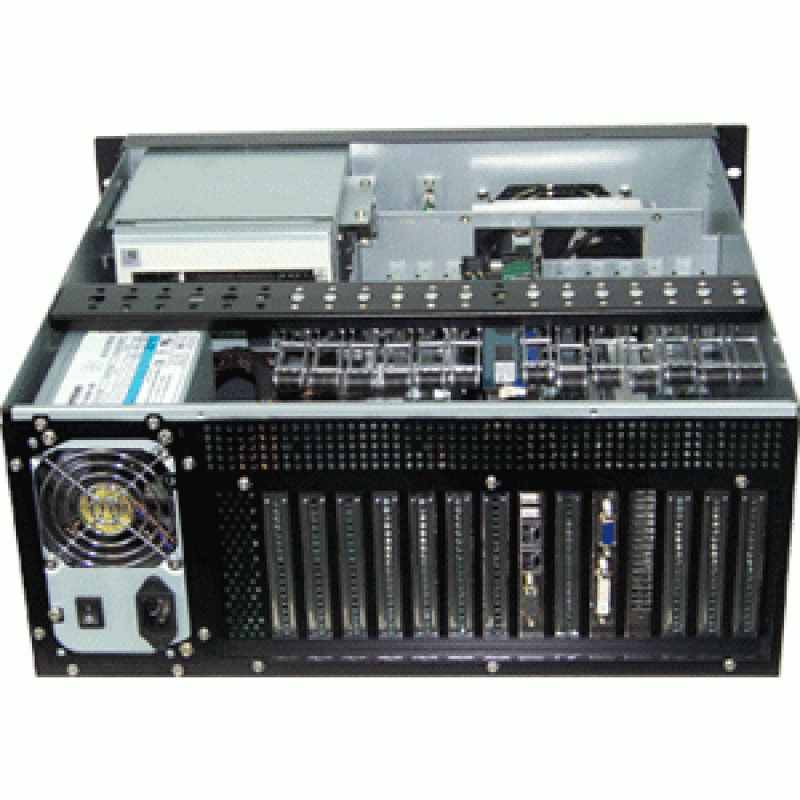

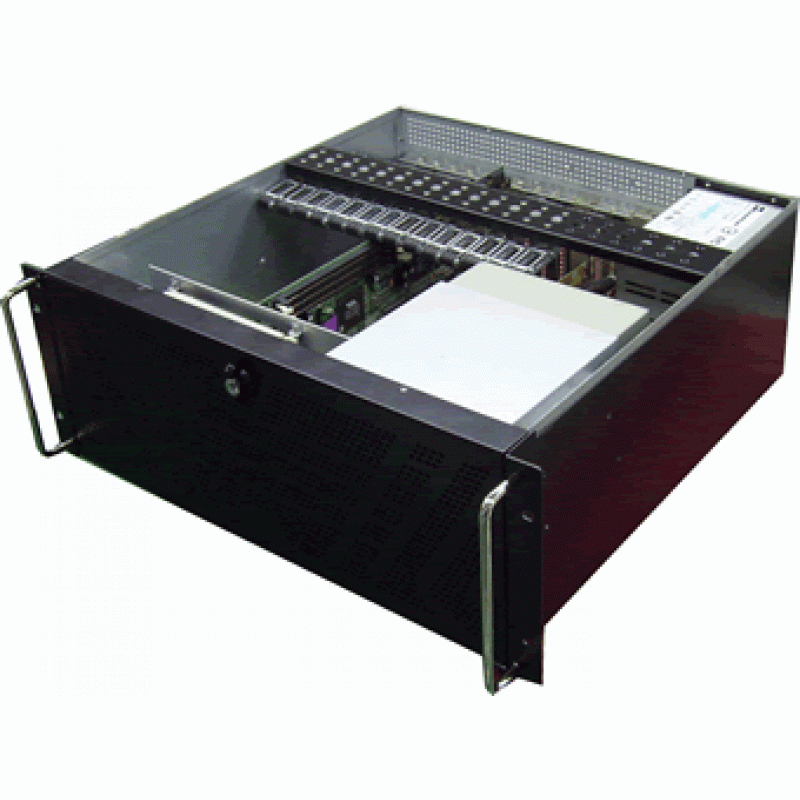

19" 4U FA Chassis for 14 slots PICMG1.3 Backplane ( version 3.1)
Construction:
- All heavy-dutyCold rolled Electroplated steel, AWG GAUGE 18 standard, SECC
- Anti-vibration & Shock resistance on HDD Cage ( 5~20Hz 1G Peak to Peak; 60~200Hz 3G Peak to Peak )
- Double side Anti-Vibration holding Clamp, fix full range of add on card,
EMI: Effective EMI shielding protect system against min. 3 GHZ of radiation.

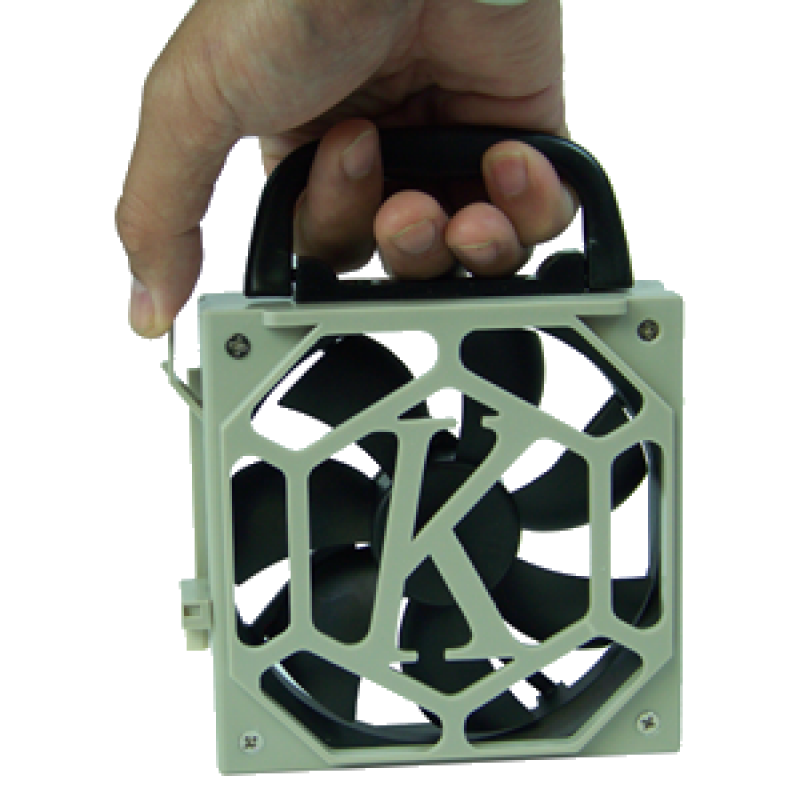

Ventilation: 1 x 120mm DC--DC High speed Ball bearing 4 Pin PWM, Hot swappable fan(2 Ball) in Front
Drive Space: 3 x 5.25" driver spaces,1 x 3.5" Floppy , 1 x 3.5" HDD driver spaces
LED Signals / USB : HDD , Lan , Power / 2 x USB 3.0

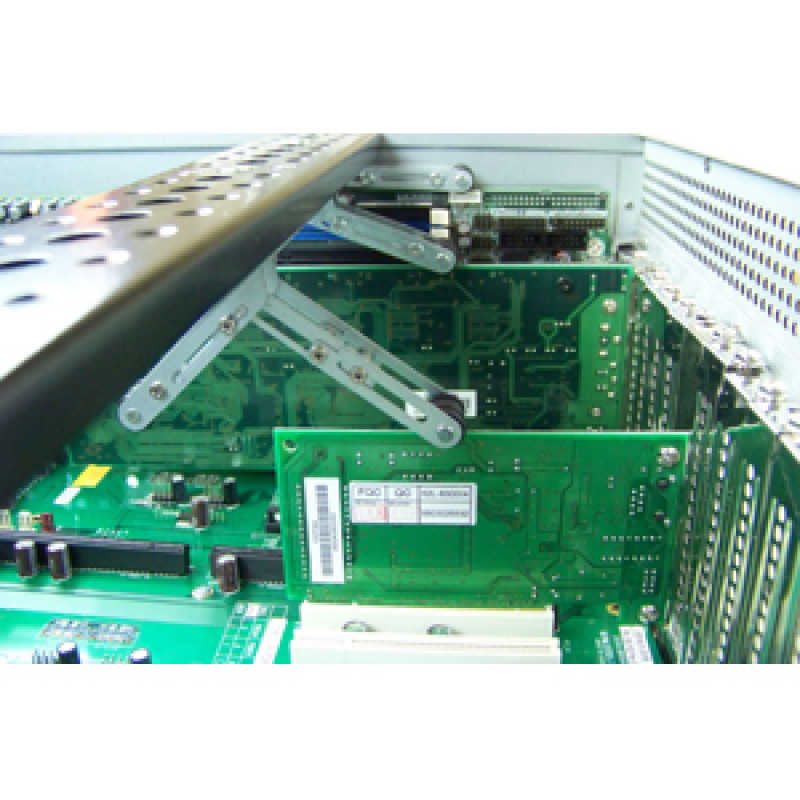

Card holding: Standard built in 3 pcs anti-vibration add-in card holding Clamps (CHC4450); Zero difference Card holding bar design
Power Supply support: PS2 ( L*H*D 150*86*140 mm ), or PS2 extended ( D > 140 mm ) , PS 2 red. PS Twins pro 500 / 700 / 900
Backplane support:
Custom Tariff Nr. ( HS code ) : 84733080
Download:
- Datasheet[Format:PNG]
- Mechanic Drawing [Format:JPG]
- IPC4450MB Manual (V1.10)[Format:PDF]
