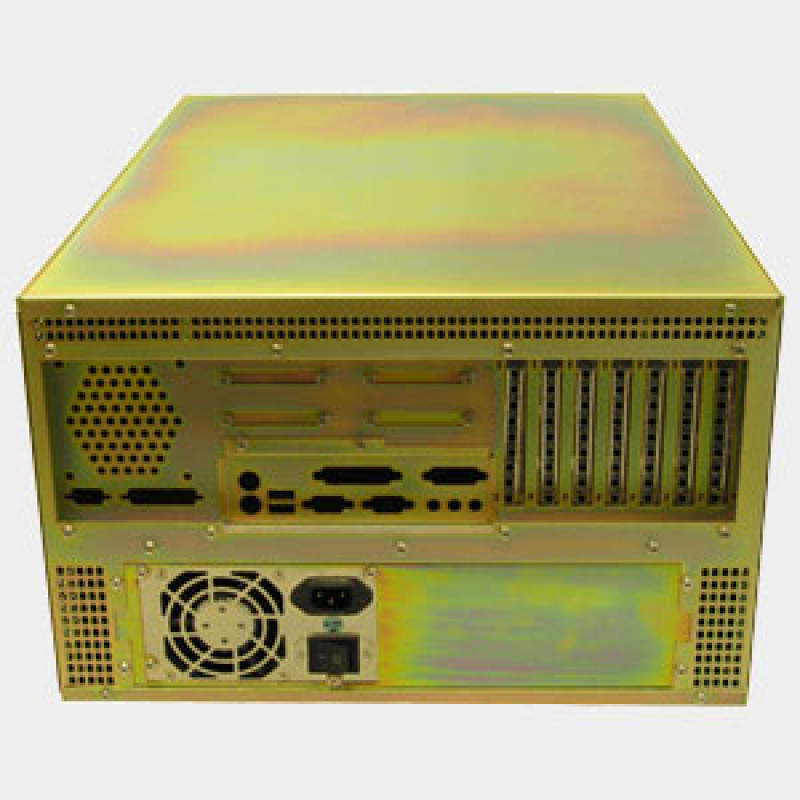

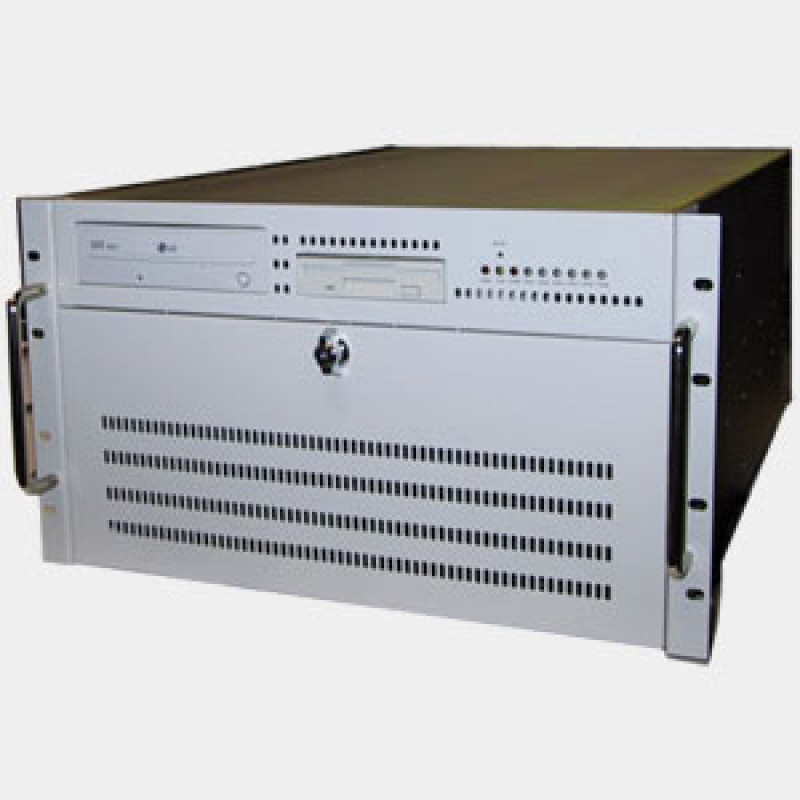

19" 6U Multi-function RackServer With Flexible HDD Drivers design
Main Board supported : full sized Extended ATX( 12"*13") & 16"*13"
EMI: Effective EMI shielding protect system against min. 2 GHZ of radiation.

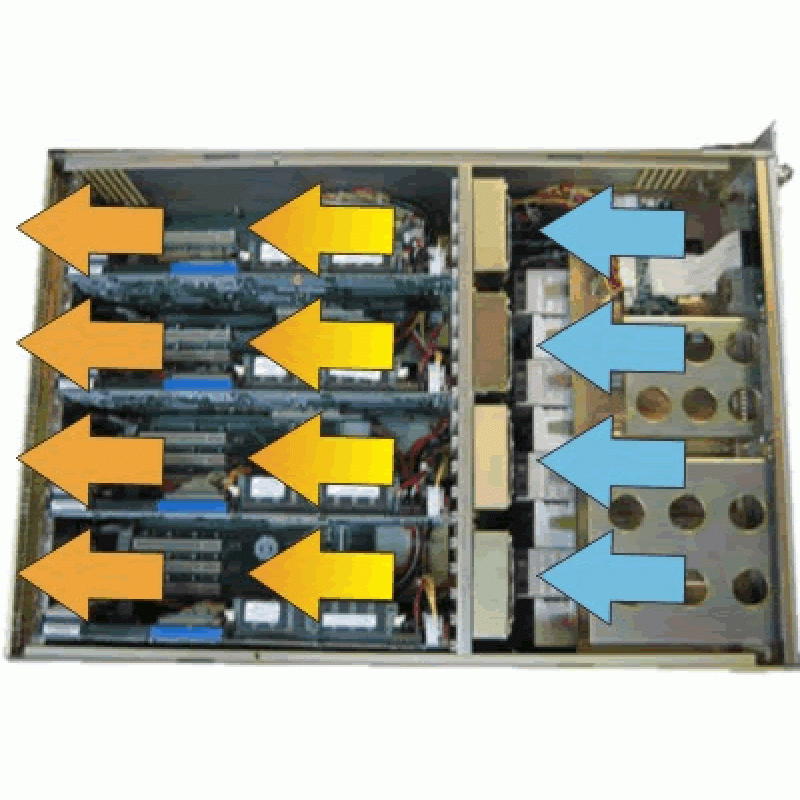

Ventilation: Six pieces Easy replacement 80mm DC--DC High speed Ball bearing fans(2 Ball)

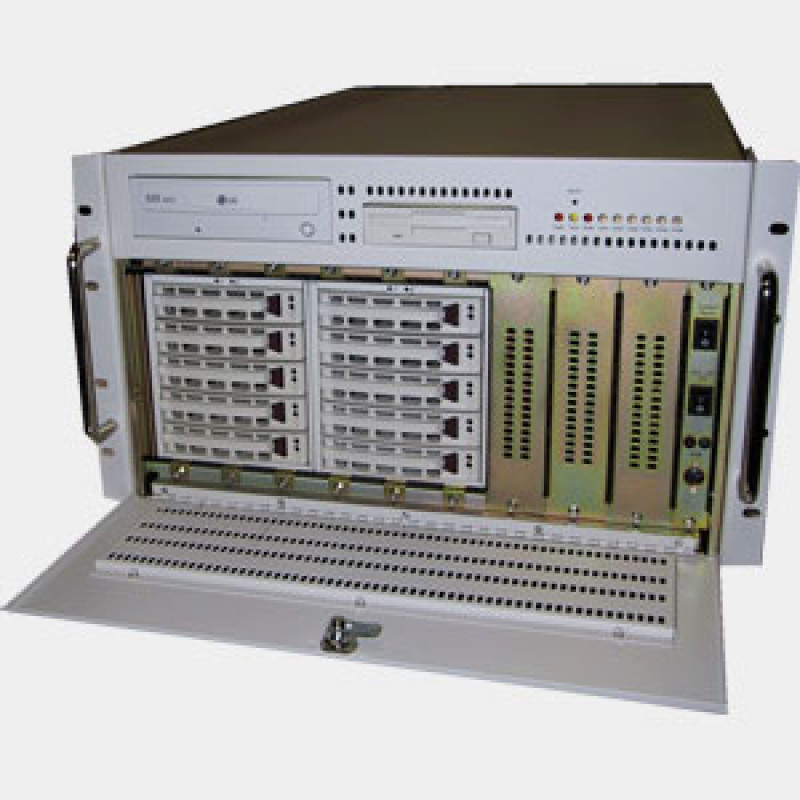

Driver Space:
- One 5.25" Drive and 3.5" drive reserved for CD Rom & Floppy
- 9 pieces Flexible 5.25" HDD drivers spaces for different purpose HDD Backplane(SCA, Serial ATA or Parallel IDE)
LED Signals: LED for HDD Access, fan , Temperature power status, picture
Enviroment control board: Fan, HDD acc. & Power, datasheet , picture
Power supply: 700W , 1200W, 2000W, red. Power supply: Twins pro 700, Twins pro 900
Custom Tariff Nr. ( HS code ) : 84733080
Download: Datasheet: IPC607 , Manual V1.41 for IPC 607
