Micro ATX Wall Mount / Industrial Tower Chassis design for full size add in card
Construction: All heavy-duty steel, AWG GAUGE 18 standard, SGCC
Drive Space: 1x5.25", 1 X3.5" & 1x3.5" HDD (Internal)
Slots: 4 slots full size add in card
Main board: Micro ATX format, 9.6 x 9.6 MB
Ventilation: 1 x 120mm DC--DC High speed Ball bearing 4 Pin PWM(MTBF> 60,000 hours)., Hot swappable fan(2 Ball) in Front( see picture ) with air filter
Power supply:
- SFX P/S :
- Standard PS 2 P/S( 150x86x140mm)300W / 460W / 500W PS2 size P/S
- PS2 size redundant Power supply : TP500 , TP700
Custom Tariff Code ( HS code ) : 84733080
Download:
|
|

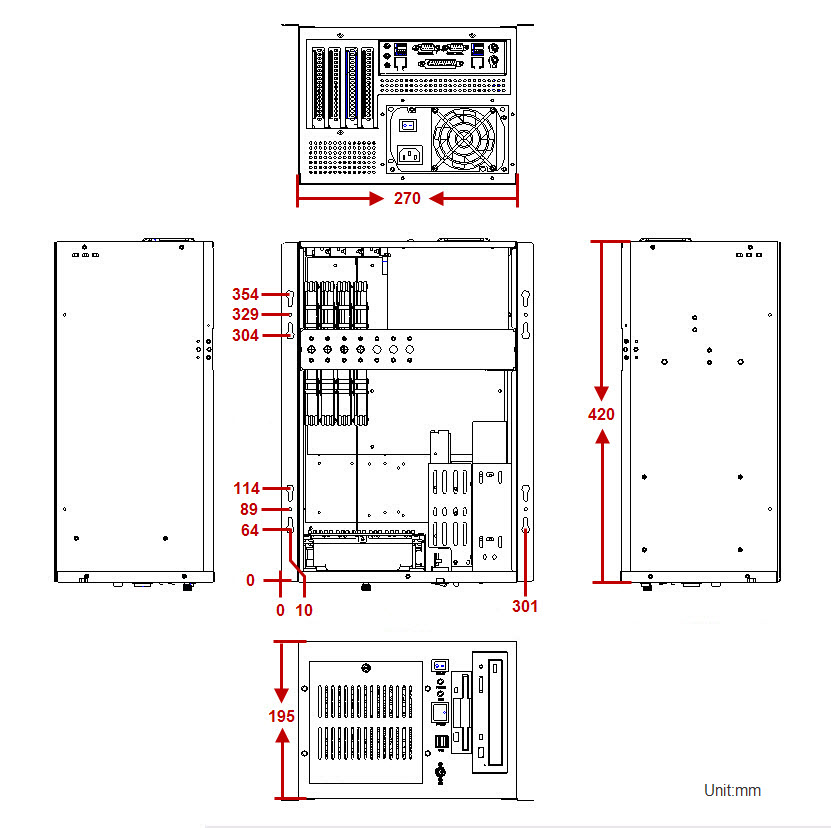

Datasheet[Format:PNG]Mechanical drawing[Format:JPG]Maunual [Format:PDF] |
