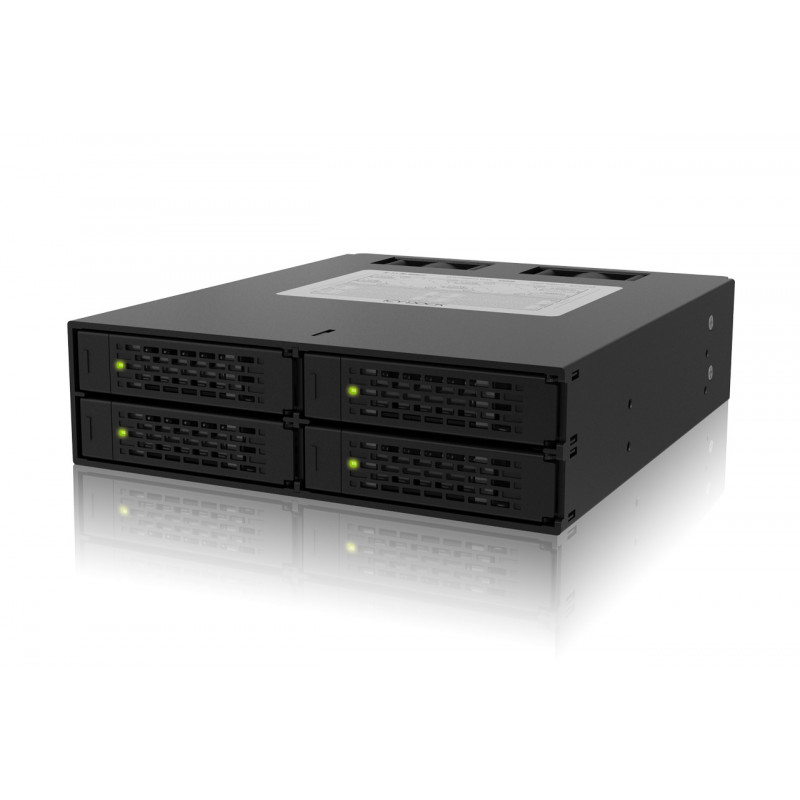

Rugged Full Metal 4 Bay 2.5" SAS/SATA HDD & SSD Backplane Cage for External 5.25" Bay
Features:
Rugged Heavy duty full metal construction with commercially designed for Medical & Military systems, Media servers, and IPCs, approved & used by Tier 1 companies.
Perfect for rugged applications and complies with flammability requirements.
Fits 4 x 5mm to 15mm 2.5” SATA HDD or SSD in a single external 5.25” bay for high performance RAID applications.
Anti-Vibration Technology (AVT) - creates a safe environment for hard drives or SSDs.
Active Power Technology (APT) - individual led & cooling fan only powers up if there is a drive installed in the bay.

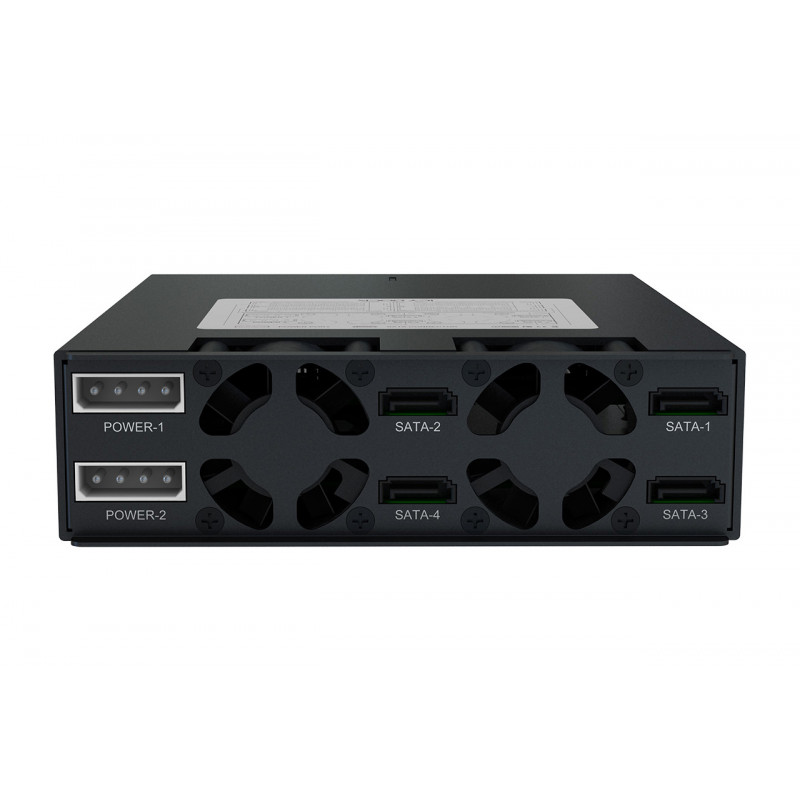

2 x 4 pin power connector to reduce cable connections.
Dual 40mm cooling fans.

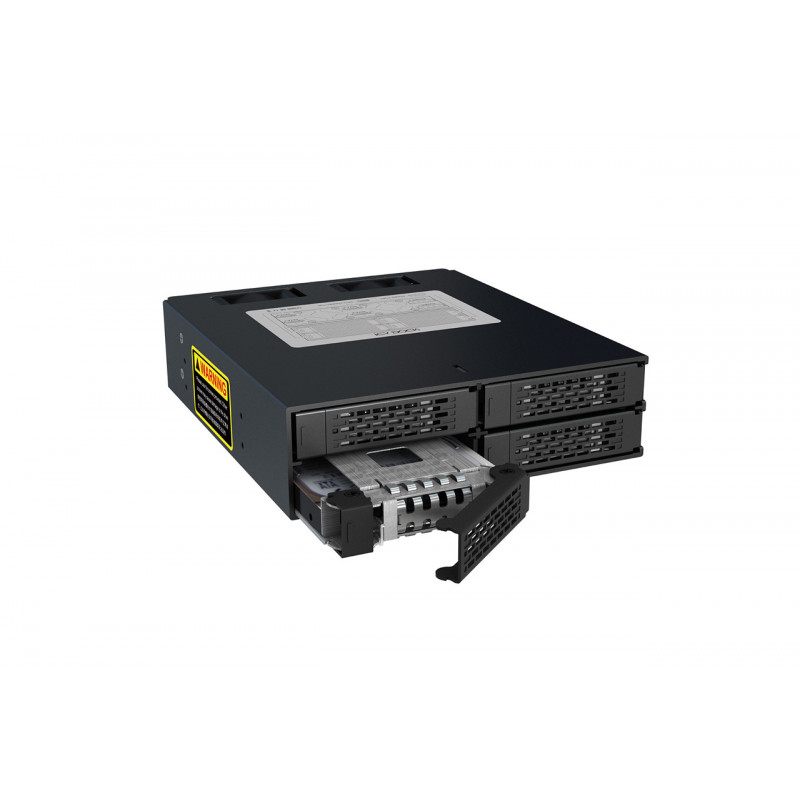

Eagle-hook lock system keeps drives secured within the enclosure.
Supports SATA 3.0 up to 6Gbps / SAS 4.0 up to 24Gbps (single channel)
Status LED on Front for Each Drive.
Safety:
Download: Datasheet, 2D-drawing, Manual
