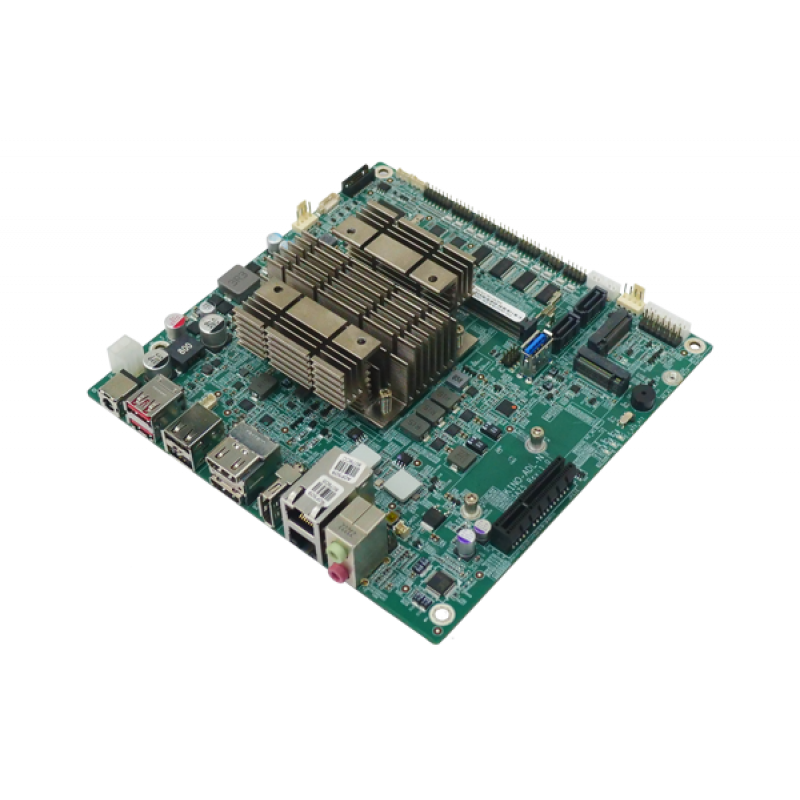

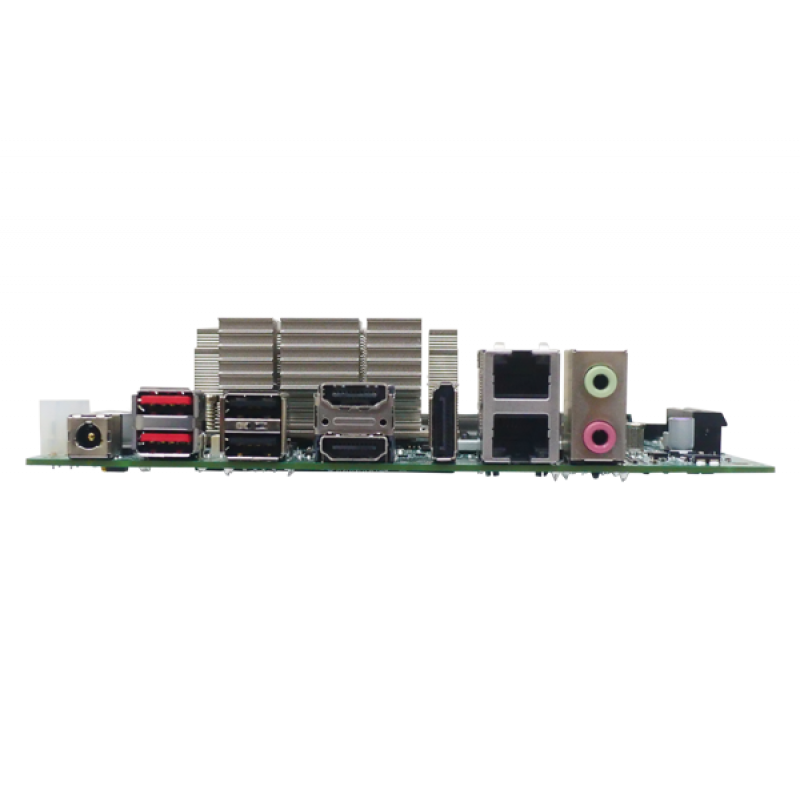

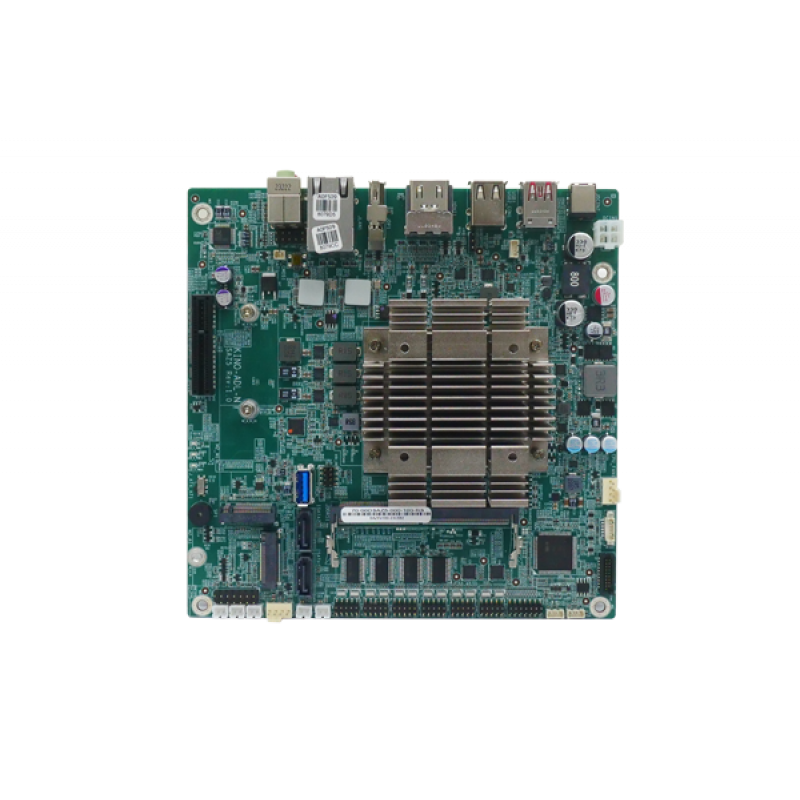

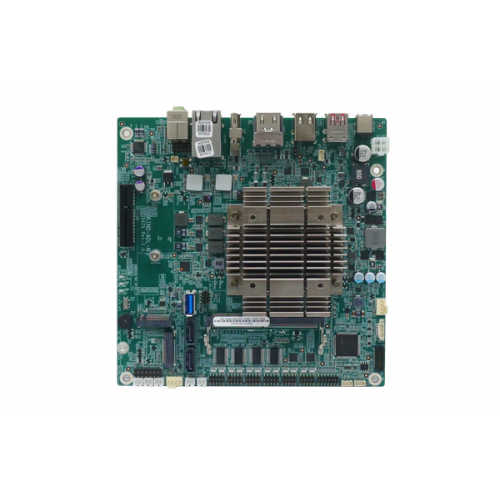

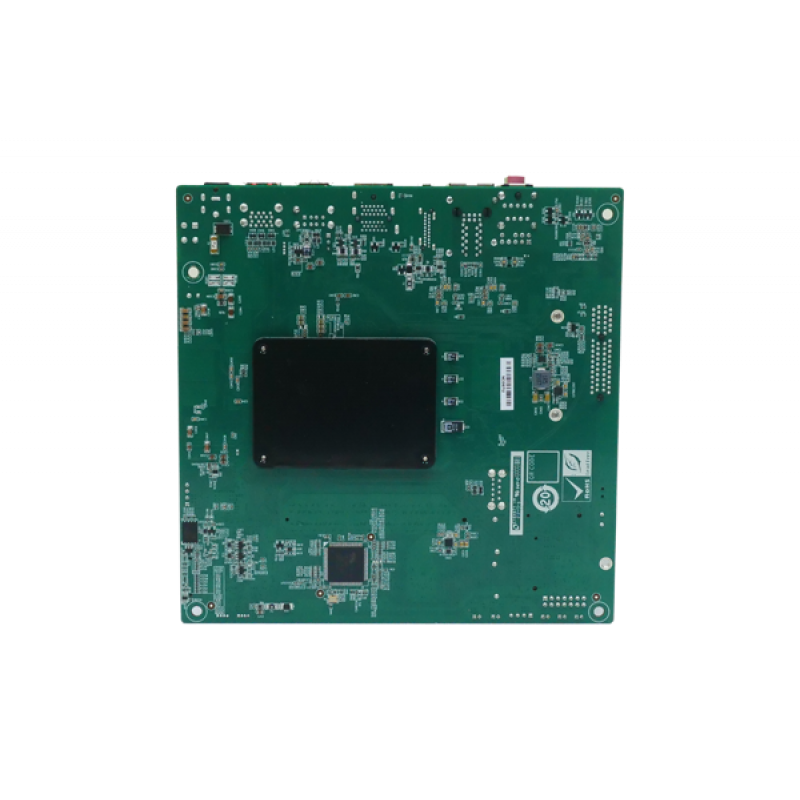

IEI KINO Mini-ITX MB with Intel® Alder Lake-N SoC Processor, DDR5 SODIMM, 12~28V DC input, Triple Display, Intel® 2.5GbE, M.2, RoHS
Description:
• N200 mobile CPU , 4 Cores 4 Threads , 3.2 GHz , 6 MB Intel® Smart Cache, TDP 6W
• Support 4800MHz DDR5 SO-DIMM up to 16 GB
• Triple independent displays with dual HDMI and DP
• Graphic: Intel® Gen 12 UHD Graphics with 16/24/32 EU
• High speed I/O interface for USB 3.2 Gen 2, SATA 6Gb/s
• Dual 2.5 GbE LAN with Intel® I226V
• Support one PCIe Gen3 x4, one M.2 A key and one M.2 M key slot
Packing list:
- 1 x KINO-ADL-N single board computer
- 2 x SATA cable
- 1 x I/O Shielding
- 1 x QIG
Custom Tariff Nr.: 84733020
Safety:
,
compliant ,
