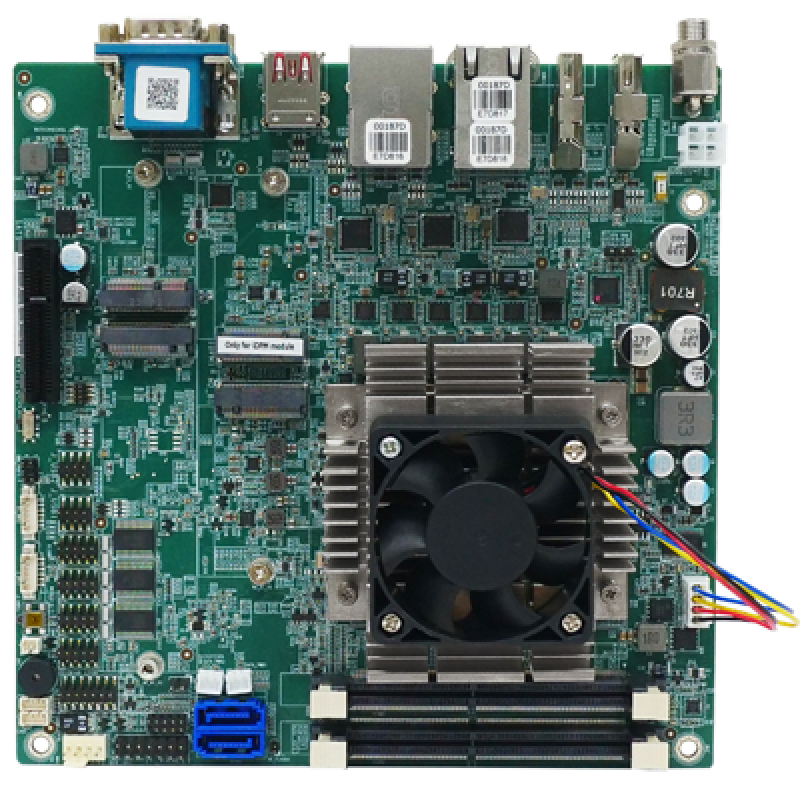

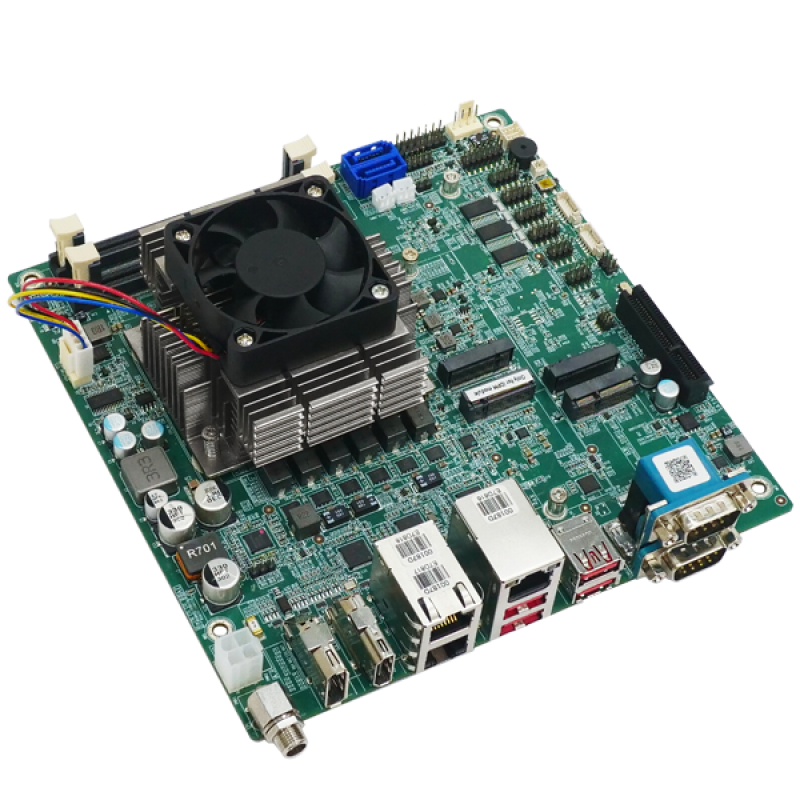

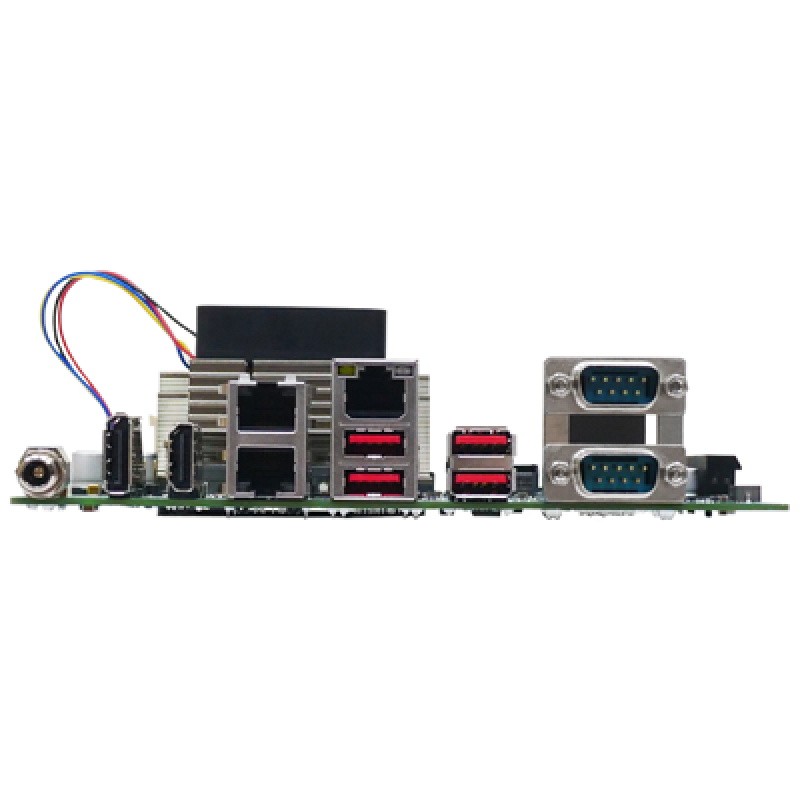

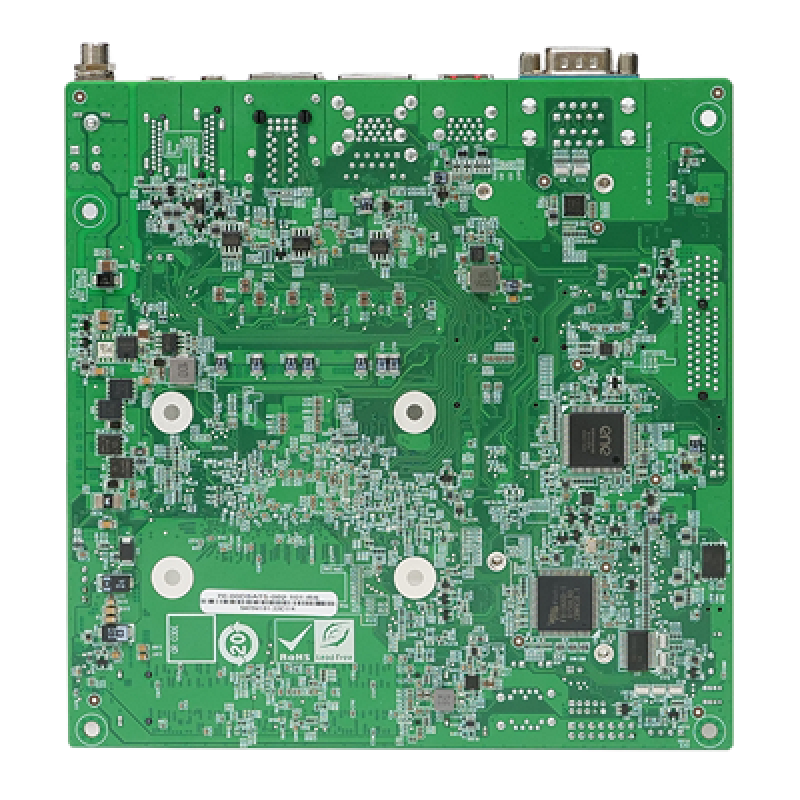

IEI mini-ITX SBC with Intel® Alder Lake-P/Raptor Lake-P SoC Processor, DDR4 SO-DIMM, 12~28V DC input, Triple Display, Triple Intel® 2.5GbE, USB 3.2, SATA 6Gb/s, RoHS
Description:
● Support 12/13th Intel® mobile Alder Lake-P/Raptor Lake-P on-board processor
● on board Intel® Alder Lake-PS Celeron® 7305 processor (socket), TDP 15W
● Dual-channel DDR4 SO-Dimm( 2*260-pin ) ~ 3200MHz, up to 64 GB
● GPU: Intel® UHD Graphics for 12th Gen Intel® Processors
● Support triple independent display via HDMI™, DP and iDPM
● Support PCIe Gen3 x4, M.2 M key, M.2 B key and M.2 E key expansion
● TPM: Intel® PTT(TPM 2.0)
Packing list:
- 1 x KINO-ADL-P MB
- 1 x I/O Shielding (45014-0104C0-00-HF)
- 1 x SATA cable
- 1 x QIG
Safety:
,
compliant,
,
Download:Datasheet, QIG, Manual
Call for Optional CPU messages & Quotation:
i3: Intel® Alder Lake-P Core™ i3-1220P, 10C/12T, Mobile CPU 4.4 GHz 12 MB smart Cache TDP 28W, GPU: Intel® UHD Graphics for 12th Gen Intel® Processors
i5: Intel® Alder Lake-P Core™ i5-1240P, 12C/16T, Mobile CPU 4.4 Ghz 12 MB smart Cache TDP 28W, GPU: Intel® Iris® Xe Graphics eligible
i7: Intel® Alder Lake-P Core™ i7-1260P, 12C/16T, Mobile CPU 4.7 GHz 18 MB smart Cache TDP 28W; GPU: Intel® Iris® Xe Graphics eligible
